power plant CFB boiler lpg steam boiler pressure parts boiler drum
Description

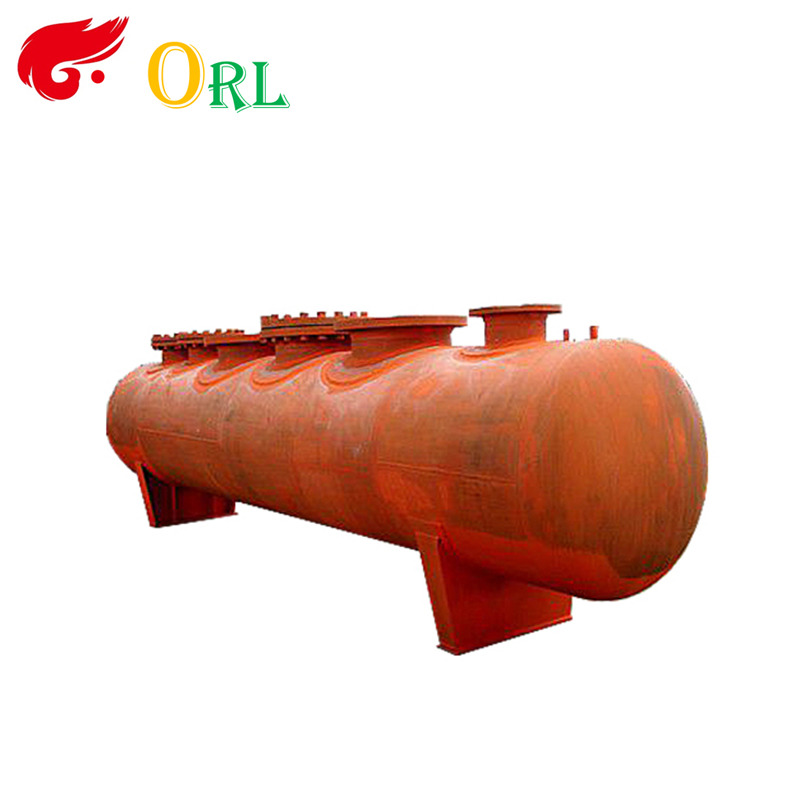

In the water tube boiler the upper drum (Boiler steam drum) provides for separation of steam from water. It also provides liquid holdup capacity (typically 10 to 60 seconds) to allow for a dynamic response to load changes without losing liquid in the downcomer and riser tubes. The size of the steam drum is determined by the volume required for a clean separation between steam and water to produce a dry saturated steam, it also provides an adequate amount of steam storage. The steam drum is also called the upper drum.
Product parameter
|
Product Name |
Boiler Steam Drum ( Steam Water Separator ) |
|
Applied Area |
Natural circulation boiler |
|
Drum Shell Plate Material |
- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70 - Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353 |
|
Drum Head Material |
Same as shell |
|
Nozzle Tube Material |
As per design |
|
Standard |
China GB, ASME, EN |
|
Manufacturer Grade |
China A Grade, ABS Certificated, TUV Certificated |
|
Working Temperature |
Saturation Temperature at rated pressure |
|
Working Pressure |
1.6 MPa ~ 22.5 MPa |
|
Shell Plate Thickness (Drum Wall Thickness) |
≤150 mm |
|
Drum Diameter |
≤3,200 mm |
|
Drum Length |
≤25,000 mm |
|
Welding |
- Shell : SMAW, SAW - Nozzle tube : GTAW (TIG), SMAW |
|
Welding NDT |
- Shell longitudinal seam : 100% RT, 100% UT - Shell circumferential seam : 100% RT, 15% UT - Nozzle tube angle seam : 100% UT, 100% MT |
