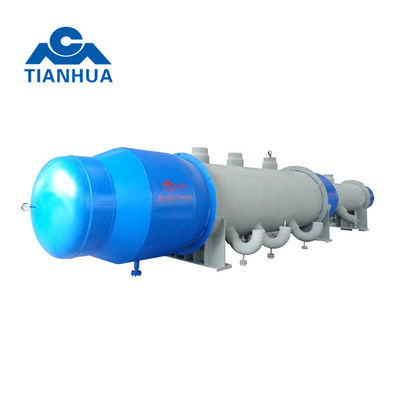

Natural Circulation Environmental Protection Equipment Waste Heat Recovery Steam Generator WHB Waste Heat Boiler

1.0 Sets
MOQ
Natural Circulation Environmental Protection Equipment Waste Heat Recovery Steam Generator WHB Waste Heat Boiler
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Construction works , Energy & Mining
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: NoEnName_Null
Condition: New
Type: Natural Circulation, Heat Exchanger
Usage: Industrial
Structure: Water Tube
Pressure: Maximum using pressure 12.6MPa
Steam Production: Steam
Style: Natural Circulation, Heat Exchanger
Fuel: Waste Heat, Waste Heat
Output: Steam
Dimension(L*W*H): Cylinder diameter:1000~3200mm
Weight: According to Drawing customize
Warranty: 3 years
Key Selling Points: Automatic
Product name: Waste heat boiler
Power(W): Equipment Requirement
Structural: Horizontal or Vertical
Voltage: Equipment Requirement
Product Type: Waste heat recoverer Steam generator
Advantage: Stable operation, safe and reliable.
Maximum intake temperature: 1250°
Function: Wet Steam
After Warranty Service: Online support, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Engineers available to service machinery overseas
인증: CE/ASME/ISO9001/ISO14001
기본 정보
인증: CE/ASME/ISO9001/ISO14001
결제 및 배송 조건
Packaging Details: Wooden Crates
Supply Ability: 100 Set/Sets per Year
제품 설명
Products Description
Flexibility Thin Tubesheet Waste Heat Boiler
Waste heat recovery system designed&supplied by Tianhua Institute of Chemical Machinery & Automation Co.,Ltd has been successfully promoted in methanol unit and ammonia unit for hundreds, after years of use, complete sets of equipment of the application effect is good, the application performance is enough to prove that the domestic technology level and supply ability of complete sets of equipment is reliable.the waste heat boiler technology developed by our institute has more than 300 sets of applications in the production plant, some of them are exported abroad, and the profits are remarkable. After years of engineering applications, the quality is reliable, fully meet the user's production requirements.The WHB system includes waste heat boiler, steam drum, regulating valve and their accessories the overall designed and supplied.
Product Paramenters
The tubesheet using flexibility thin tubesheet,
Hot-end channel using double-insulated material,
The highest gas-inlet temperature :1350 ℃,
Maximum pressure: 12.6MPa,
Diameter: φ1000 ~ φ3200mm,
By-product of the saturated steam moisture content ≤ 0.05% (wt),
The whole WHB system is very reliable.
Application areas:
Mainly used in methanation, methanol, hydrogen,ethylene, synthetic ammonia, sulfur recovery unit and other unit.
Name
Application




Waste heat boiler
Coal-to-liquids
Coal-to-gas methanation
Sulfur recovery
Methanol waste heat boiler
Synthesis ammonia
LNG coke-oven gas to LNG
Steam drum
With waste heat boiler, it is a waste heat recovery system.
Reactor
Coal-to-gas methanator
Incinerator
Sulfur recovery
Waste Heat Boiler
Structural
 Horizontal
 Vertical
Recycle design
Natural circulation
Tube sheet
Thin Tube Sheet
Industry position
 Domestic leading, international advanced.
Advantage
1.Stable operation, safe and reliable.
2.Stress analysis and design of flexible thin tube sheet.
3.Particular numerical calculation of high temperature inlet temperature     field of heat exchange tube and Thermal protection design.
4.Particular design of water supply distribution device.
5.Other designing&manufacturing key technologies.
Synonym
Waste heat boiler,WHB, Waste heat recoverer, Steam generator
